l Strip-line and air-dielectric design ·
l Wide band frequency 500-4000MHz·
l High isolation and good VSWR ·
l Low PIM
Specifications :
Part No. | HT-HC22-0540-4F |
Operating Frequency ( MHz ) | 500-4000 |
Impedance ( Ohm ) | 50 |
VSWR | 1.25 |
Coupling (dB) | 3 |
Insertion Loss (dB) | ±1 |
Isolation (dB) | 24 |
IM3 (dBc @ 2×43dBm) | -160 |
Application | Indoor & Outdoor |
Degree of Protection | IP65 |
Operating Temperature ( C ) | -40 ~ + 80 |
Interface | 4.3-10 Female |
Handling Power (Watt, max) | 500 |
Peak Power (Watt, max) | 1500 |
Dimension (mm)(L×W×H, excl connector) | 140.6×44×36.5 |
Net Weight (g) | 715±5% |

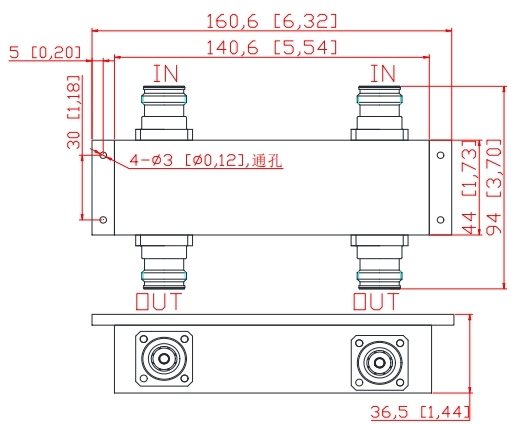

Outline Drawing :
