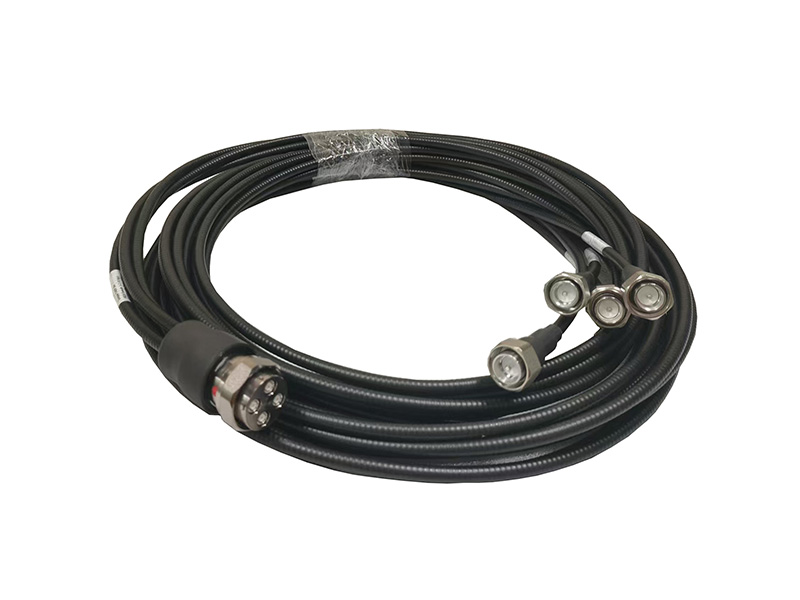

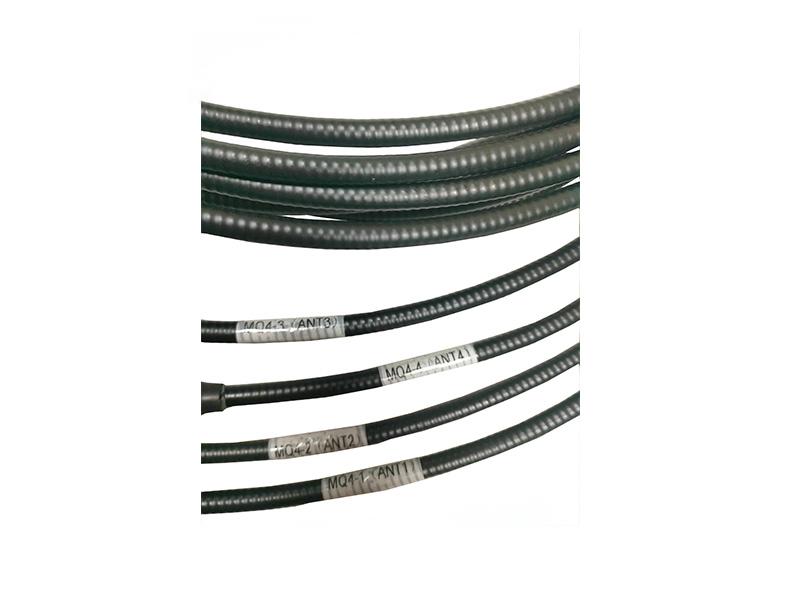

Product Description:
Cable | Type: | HC-HRCAY(Z)-50-5(1/4"Super Flexible) | |
Length: | Lm | ||
Inner Conductor | Copper-Clad Aluminum Wire | ||
Dielectric | Physical Foam Polyethylene | ||
Outer Conductor | Corrugated Copper Tube | ||
Jacket | Black | ||

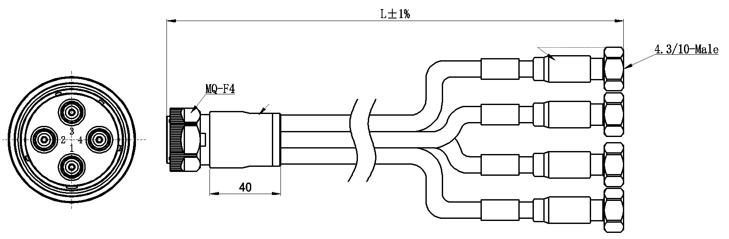

Connectors | Connector | MQ4 type female | 4.3/10 type male |
Inner Conductor Pin | Brass/Silver Plating | Brass/Silver Plating | |
Body&Outer Conductor | Brass/Sn-Ni | Brass/Trimetal Plating | |
Insulator | PTFE | PTFE | |
Gasket | Silicon Rubber | Silicon Rubber | |
Nut | Brass/Sn-Ni | Brass/Nickel Plating | |
Electrical Characteristics:
Frequency Range | DC~3.8GHz | |
Insulation Resistance | ≥5000MΩ | |
Dielectric Withstanding Voltage | 1000V | |
VSWR | @DC-2.2GHz | ＜1.1 |
@2.5-3.8GHz | ＜1.19 | |
Insertion Loss | @DC-2.2GHz | ＜0.35dB*Lm+0.20dB |
@2.5-3.8GHz | ＜0.47dB*Lm+0.20dB | |
PIM3 | @900MHz | ≤-150dBc |
Environmental and Mechanical Specifications:
Durability (matings) | ≥100 cycles |
Vibration | As perstd:IEC 60068-2-6/GB/T 17738.1 |
Damp heat (steady state) | As perstd:IEC60068-2-3/GB/T 2423.3 |
Salt mist | As perstd:IEC 60068-2-11/GB/T 2423.17 |
Temperature Range | -45℃ to+85℃ |
RoHS | Compliant |
Sealing Class | IP68 |
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Jumper cables are essential components in RF communication systems, facilitating the connection between various devices and components with minimal signal loss. Our jumper cables, designed with precision and reliability in mind, serve as crucial links in the RF chain, ensuring seamless transmission and reception of signals across different components. Hustin jumper cables excel in several aspects: Low Loss: With superior construction and materials, Hustin jumper cables minimize signal attenuation, preserving the integrity of the RF signal over long distances. High Frequency Support: Built to handle a wide range of frequencies, Hustin jumper cables are suitable for both high and low-frequency applications, ensuring versatility in diverse RF setups.
