Specifications :
Part No. | HC-AISG-MF-8PINS-Lm | |||
Proudct Description | ||||
Cable Type | 24AWG cable | |||
Inner conductor | Copper, diameter 0.5mmx8C | |||
First conductor | Copper braid, | |||
Jacket | Black PE ,diameter 6.5mm | |||
Cable Length | Lm | |||
Connectors | Connector 1、2 | AISG type male | AISG type Female | |
Inner Conductor | Brass/Gold Plating | Brass/Gold Plating | ||
Body&Outer Conductor | Brass/Nickel Plating | Brass/Nickel Plating | ||
Insulator | POM | POM | ||
Gasket | Silicon Rubber | Silicon Rubber | ||
Nut | Brass/Nickel Plating | Brass/Nickel Plating | ||
Electrical Characteristics | ||||
Description | AISG Male | AISG Female | ||
+12 VDC Nominal | 1 | 1 | ||
NO Connection | 2 | 2 | ||
RS485B | 3 | 3 | ||
RS485B Ground | 4 | 4 | ||
RS485A | 5 | 5 | ||
+24 VDC Nominal | 6 | 6 | ||
DC Return | 7 | 7 | ||
NO Connection | 8 | 8 | ||
Environmental Specifications | ||||
Rate current | 4A | |||
Single Bend radius | 60 mm Min | |||
Multiple Bend radius | 120 mm Min | |||
Temperature Range | -40°C to +80°C | |||
Protection Class | IP67(Coupled) | |||
RoHS | Compliant | |||
Application scene | Indoor/Outdoor | |||

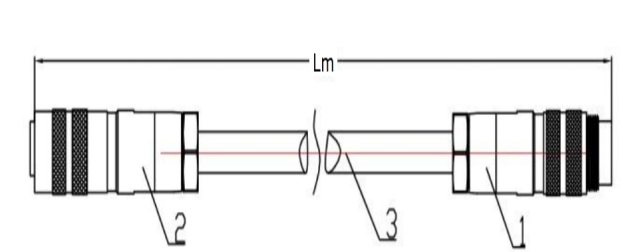

Outline drawing :
