Specifications :
Part No. | 6008641001 | ||
Item | Diameter(mm) | Material | |
Inner conductor | 1.90±0.05 | Copper clad aluminum wire | |
Insulation | 4.80±0.10 | Foamed polyethylene | |
Outer copper conductor | 6.40±0.15 | Helical corrugated copper tube | |
Jacket | 7.50±0.20 | LSZH B2ca | |
Jumper Cable Characteristic Chart | |||
Characters | Specification | ||
Cable type | 1/4”S (Black LSZH jacket.) | ||
Characteristic impedance | 50±2Ω | ||
Insulation resistance | ≥5000 MΩ·km | ||
Dielectric strength | 2000 V(DC,1 min) | ||
Minimum bending radius | 25(single) | ||
Frequency range | 0~6GHz | ||
Return loss | Length | 0.5-5m | 5-8m |
DC-1GHz | >29 | >27 | |
1.7-2.2GHz | >27 | >25 | |
2.2-2.7GHz | >25 | >23 | |
3.4-3.8GHz | >22 | >21 | |
PIM | -160dBc | ||
Operation temperature | -40-85℃ | ||
Installation temperature | -25-60℃ | ||
Storage temperature | -70-85℃ | ||
Waterproof grade | IP68 | ||
Environmental protection grade | RoHS 2.0 | ||

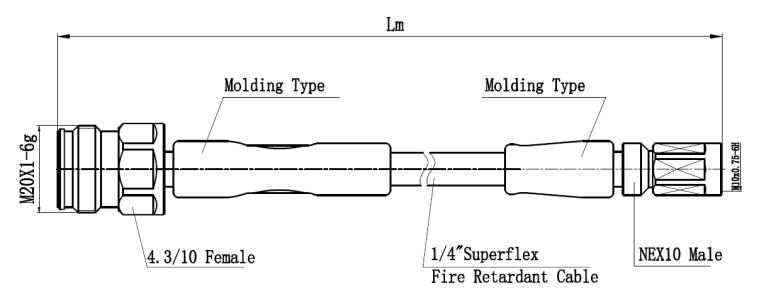

Outline Drawing :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Jumper cables are essential components in RF communication systems, facilitating the connection between various devices and components with minimal signal loss. Our jumper cables, designed with precision and reliability in mind, serve as crucial links in the RF chain, ensuring seamless transmission and reception of signals across different components. Hustin jumper cables excel in several aspects: Low Loss: With superior construction and materials, Hustin jumper cables minimize signal attenuation, preserving the integrity of the RF signal over long distances. High Frequency Support: Built to handle a wide range of frequencies, Hustin jumper cables are suitable for both high and low-frequency applications, ensuring versatility in diverse RF setups.
