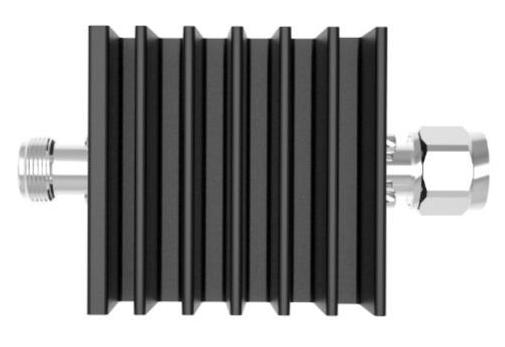

DC-6GHz N Female -N Male 20W Attenuator
Part Number | HT-AT-6G-20W-XX-NF/M(XX refers attenuation dB value ) | |||||||
Operating Frequency ( GHz ) | DC-6 | |||||||
Impedance ( Ohm ) | 50 | |||||||
VSWR | ≤1.30 | |||||||
Attenuation (dB) | 3 | 6 | 10 | 15 | 20 | 30 | 40 | 50 |
Tolerance | ± 0.8 | ± 0.8 | ± 0.9 | ± 1.0 | ± 1.0 | ± 1.0 | ± 1.2 | ± 1.8 |
IM3 (dBc @ 2×43dBm) | -110 | |||||||
Application | Indoor | |||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||||
Interface | N Female -N Male | |||||||
Handling Power (Watt, max) | 20 | |||||||
Peak Power (Watt, max) | 250 | |||||||
Dimension (mm)(L×W×H, excl connector) | 60 x 63 x 70 | |||||||
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Attenuators are essential components used in electronic circuits to reduce the amplitude of signals without significantly distorting their waveform. At Hutsin, we offer a range of attenuators designed for various applications in telecommunications, RF systems, and signal processing.
