Part No. | HT-ATT-4G-XX-1W-NFNM | ||||||
Electricals | |||||||
Operating Frequency | DC-4000MHZ | ||||||
Impedance ( Ohm ) | 50 | ||||||
VSWR | ≤1 .25@ DC-4000 MHz | ||||||
PIM(dBc) | ≤-130dBc@2*20dBm | ||||||
Application | Indoor & Outdoor | ||||||
Degree of Protection | IP65 | ||||||
Handling Power (Watt) | 1W | ||||||
Interface | N Female （input) to N Male （output） | ||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
Attenuation（dB） | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
Attenuation Tolerance（dB） | ±0.4 | ±0.4 | ±0.5 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
Mechanicals | |||||||
Dimension (mm) | 58×Φ21(includes connectors) | ||||||
Net Weight (g) | 70 | ||||||
Color | silver | ||||||

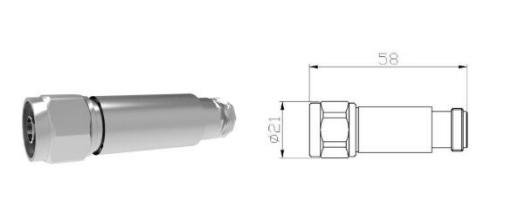

Outline drawing :
