Part No. | HTATT-4G-XX-1W-43F43M | ||||||
Electricals | |||||||
Operating Frequency | DC-4000MHZ | ||||||
Impedance ( Ohm ) | 50 | ||||||
VSWR | ≤1.25@DC-4000MHz | ||||||
PIM(dBc) | ≤-130dBc@2*20dBm | ||||||
Application | Indoor & Outdoor | ||||||
Degree of Protection | IP65 | ||||||
Handling Power (Watt) | 1W | ||||||
Interface | 4.3-10 Female（input）to 4.3-10 Male（output） | ||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
Attenuation（dB） | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
Attenuation Tolerance（dB） | ±0.4 | ±0.4 | ±0.5 | ±0.7 | ±0.8 | ±0.8 | ±08 |
Mechanicals | |||||||
Dimension (mm) | 35 ×Φ 18 （excludes connectors） 71 . 4 ×Φ 18 ( includes connectors) | ||||||
Net Weight (g) | 80 | ||||||
Color | silver | ||||||

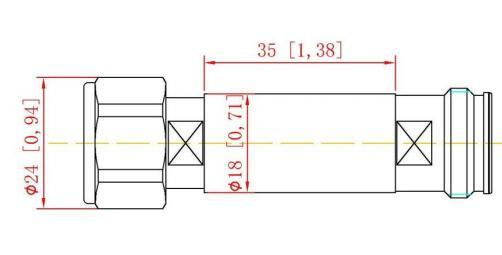

Outline drawing :
