SISO Omnidirectional ceiling antenna 350～520/617～960/1695～2700/3300～4200/4800～6000MHz 4/4/6/7/7dBi

Polarization

Linear or Horizontal

Peak Gain (dBi)

4

4

6

7

7

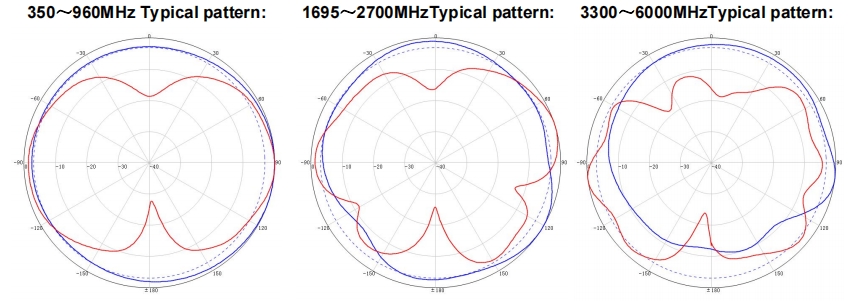

Horizontal beam width (°)

360 ，omnidirectional

Typical Vertical beam width (°)

120

90

80

50

40

Impedance (Ω)

50

VSWR

≤1.8

≤1.5

Intermodulation IM3 (2×43dBm carrier)

/

≤-153 dBc

≤-153 dBc

≤-153 dBc

/

Maximum power (W)

50

Connector

N Female or 4.3-10 Female

Exposed cable size (cm)

30

Connector position

Bottom

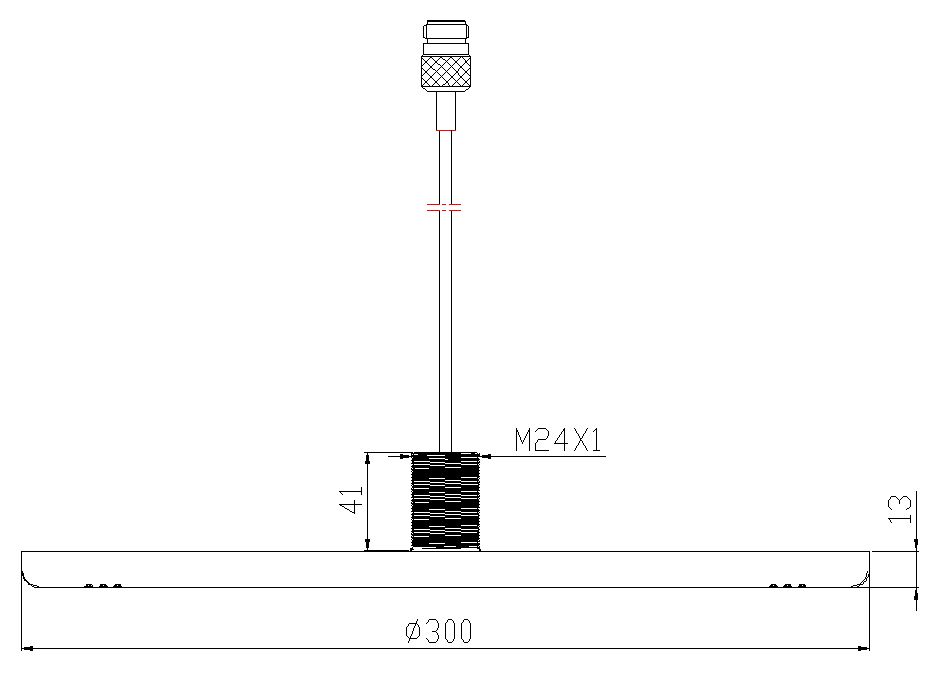

Antenna size (mm)

Φ300* 13

Packing size (mm)

325*325*88

Weight (kg)

≤0.55

Radome material

ABS

Radome color

White（RAL 9003)

Operating humidity (%)

5～95

Operating temperature (℃)

-40～60

Application

Indoor

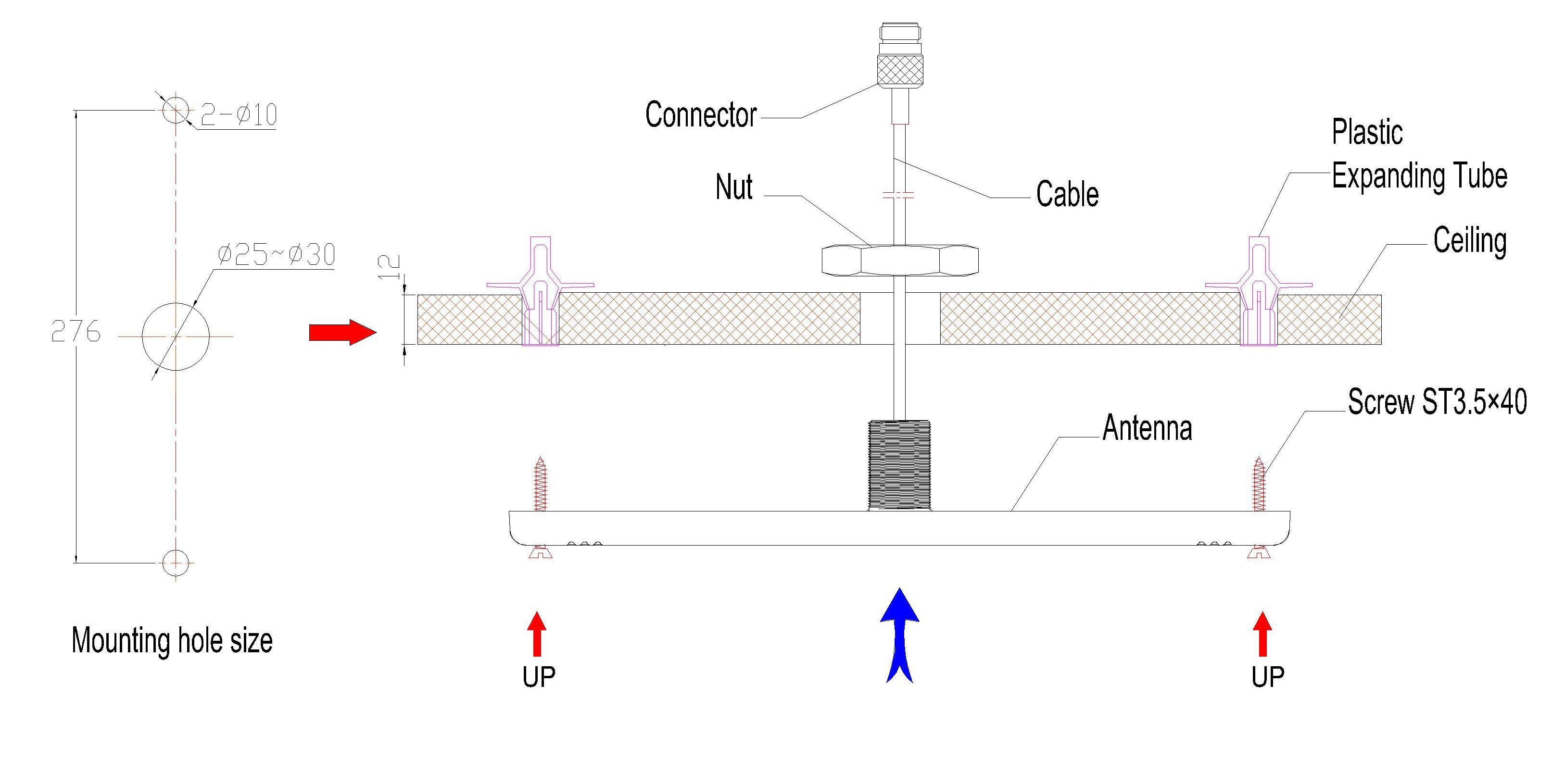

Mounting

Fixed with nut
