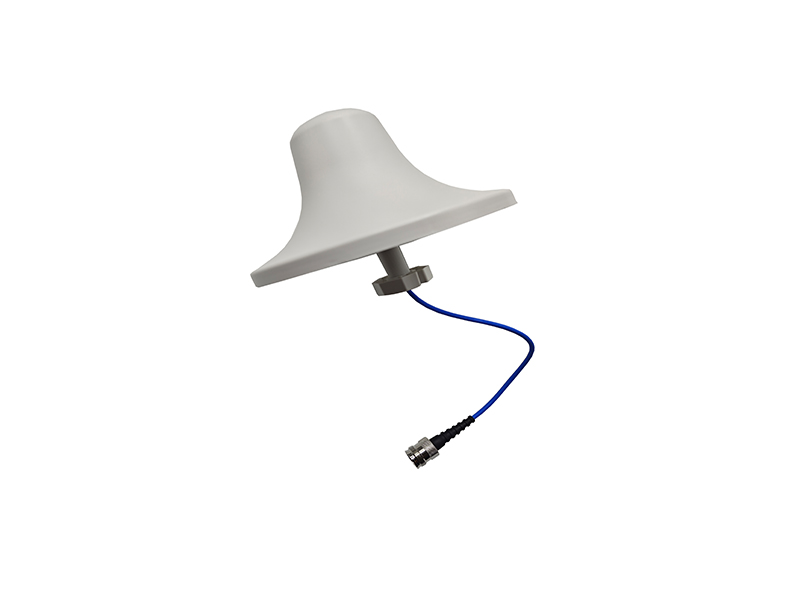

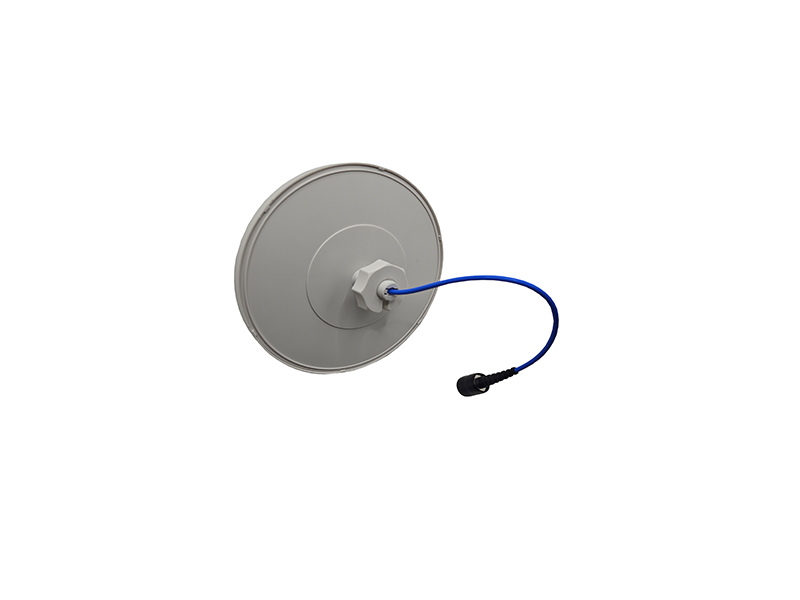

Indoor Wide band Omni Antenna , coverage 698MHz - 6000MHz

Item No.

HT-OA-0660-43F

Frequency Range

MHz

698-806

806-960

1710-2700

3400-6000

Gain

dBi

1.8±0.5

2.0±0.5

3.0±1.0

4.5±1.0

Polarization

Vertical

Beam width

Horizontal

deg

360

Vertical

90

70

35

30

VSWR

≤1.8

≤1.5

≤1.5

≤1.8

PIM, 3rd Order, 2 x 20 W,

dBc

≤-153

Input Power, maximum

watts

50

Impedance

ohm

50

Mechanical Specification

Connector Type

4.3-10-female

Dimensions

mm

Φ203×115

Weight

kg

0.37

Mounting Kit

Ceiling, via hole (standard) ABS, White, RAL9003

Radome Material and Color

Operational Temperature

oC

-40～55

Operational Humidity

%

< 95

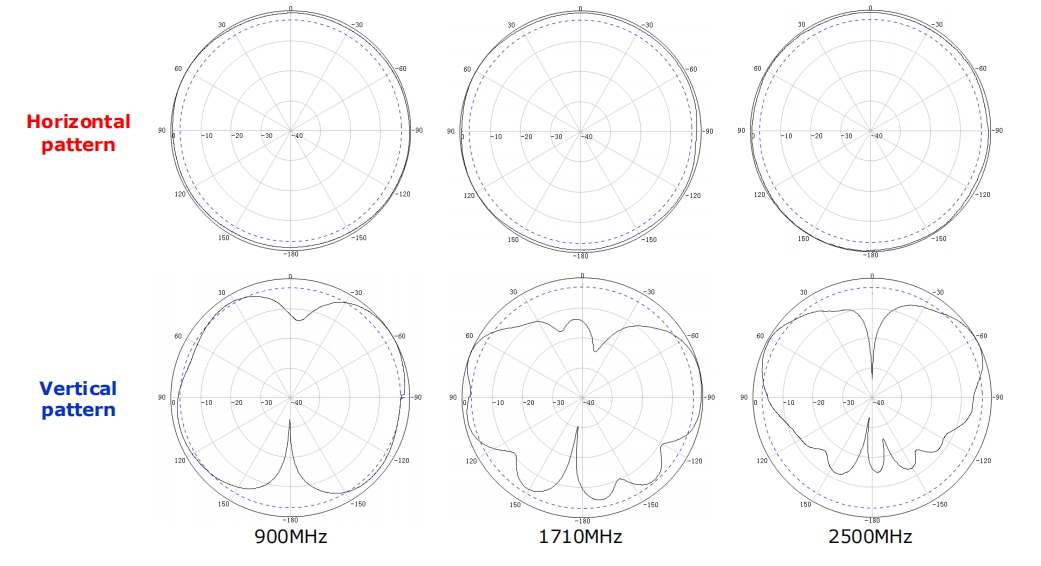

Radiation Pattern

•     Wideband Omni Antenna, coverage 698MHz - 6000MHz.

•     Typically both used in indoor distribution of GSM/CDMA

      WIFI/3G/LTE services.

•     Low return loss, Stable performance.

•     Compact, light-weight and easy to install.

•     Supplied with mounting clamp.

•     PIM<-153dBc @ 2x20 W.

•     4.3-10-female.
