Coaxial lightning arrester

Wiring instructions:

1.The lightning protector will be installed horizontally in the corresponding position

2.I Specifications ntercept the appropriate length of radio frequency line, connect the lightning protector and the protected equipment RF input port  .

3.Complete the RF line from the outdoor into the lightning protector connection .

4.Ground the lightning protector to the nearest ground.

ProductOverview:

Antenna feeders witch type series lightning protection products are mainly used in RF signal system to protect communicationequipment signal line from the influence of lightning electromagnetic pulse,induction over voltage, operation over voltage,and arewidely used in wireless coverage,communication base station,cable TV,satelliteTV,GPS and other fields of RF line protection.This series of products has the characteristics of wide frequencyrange,low insertion loss,small standing wave,etc.,and has good lightning protection effect without affecting thenormal communication of the equipment.

Specifications

Product Image:

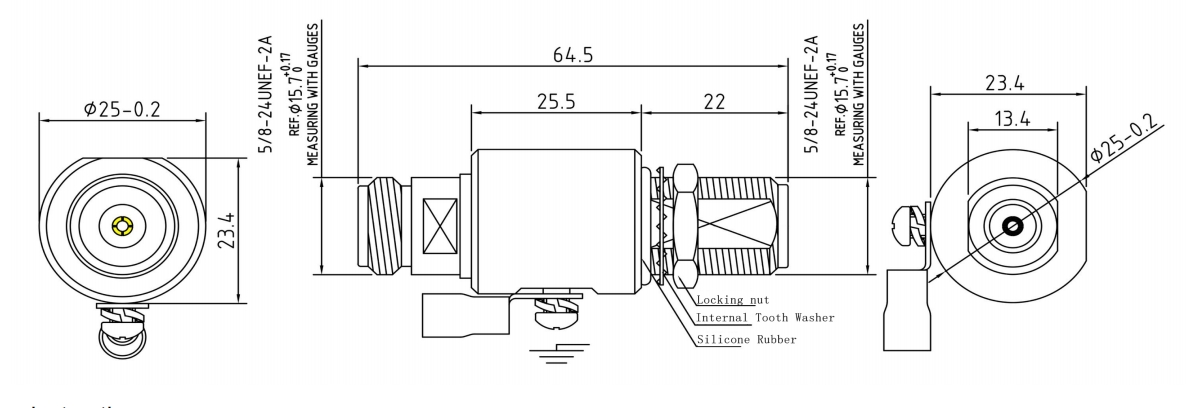

Outline drawing :
