Connector /Adaptor

Adaptor 4.310 male to 4.310 male(4.310-JJ)

Connectors and Adaptor serve as the interface between different RF components and devices, ensuring reliable and efficient electrical connections. They enable easy installation, maintenance, and flexibility in RF system configurations. Our company's connectors boast: High durability and reliability, ensuring stable connections in demanding environments. Precision engineering for optimal signal integrity and low insertion loss. Wide compatibility with industry-standard interfaces, facilitating seamless integration into diverse RF systems. Applications: Base stations Antenna systems Test and measurement equipment Military and aerospace communications

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Part No.

4.3/10-JJ

Electrical Performance

Characteristic Impedance

50 ohm

Frequency Range

DC-6GHz

VSWR

≤1.10

PIM3

≤-163dBc

Dielectric Withstanding Voltage

≥2500V RMS,50Hz,at sea level

Dielectric Resistance

≥4000MΩ

Contact Resistance

Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability

Mating cycles ≥500

Material and plating

Body

Brass, Tri-Alloy plating

Insulator

PTFE, NATURAL

Contact PIN

Brass,Ag plating

Environmental

Temperature Range

-40℃~+85℃

Waterproof(1m water depth, 24hours)

IP68

RoHS

Full RoHS-Compliance

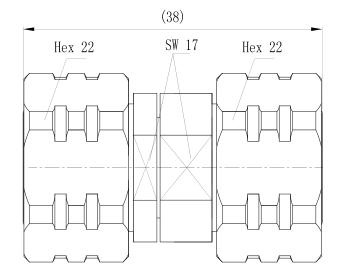

Outline drawing :
