l The high-performance of attenuation allows coaxial cable to be used in different RF systems, such as 3G, 4G mobile communication.
l Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others.
l Lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance lead to fewer energy loss and outer interference.
Specifications :
Part No. | HT-HCTAY(Z)-50-22 | ||
Material and dimensions | |||
Inner conductor | Copper tube | Ø 9.00±0.10mm | |
Insulation | Foam PE | Ø 22.50±0.30mm | |
Outer conductor | Annular corrugated copper tube | Ø 24.90±0.30mm | |
Jacket | PE or LSZH | Ø 27.50±0.30mm | |
Electrical | |||
Impedance | 50 ± 2Ω | ||
Relative Velocity of Propagation | 88% | ||
Capacitance | 76 pF/m | ||
Maximum Operating Frequency | 5.2 GHz | ||
Peak Power Rating | 90 kW | ||
Insulation Resistance | ≥10000 MΩ . km | ||
DC Breakdown Voltage | 1000V | ||
Jacket Spark Test Voltage | 8000 Vrms | ||
Inner Conductor DC-resistance | ≤ 2.65Ω/km | ||
Outer Conductor DC-resistance | ≤2.30Ω/km | ||
Shielding Attenuation | ≥ 120 dB | ||
Environmental | |||
PE | FRNC | ||
Installation Temperature | -40°C to +60°C | -20°C to +60°C | |
Operating Temperature | -55°C to +85°C | -30°C to +80°C | |
Storage Temperature | -70°C to +85°C | -30°C to +80°C | |
Mechanical Specifications | |||
Tensile strength | 1450 N | ||
Min. bending radius (single) | 125 mm | ||
Min. bending radius (repeated) | 250mm | ||
Bending moment | 16 Nm | ||
Flat plate crush strength | 10 N/mm | ||
Standard Conditions | |||
Attenuation VSWR 1.0 Ambient Temperature | 20°C | ||
Average Power VSWR 1.0 Ambient Temperature | 40°C | ||
Average Power Inner Conductor Temperature | 100°C | ||
PIM | Intermodulation(3rd order,2*20W) ;≤-160dBc | ||
VSWR | 690MHz -960MHz≤1.15 | ||
1700MHz -2700MHz≤1.15 | |||
3300MHz - 4000MHz≤1.20 | |||
Attenuation | |||
Frequency (MHz) | Attenuation (dB/100m) | Average Power (KW) | |
200 | 1.69 | 6.27 | |
450 | 2.65 | 3.73 | |
800 | 3.64 | 2.49 | |
900 | 3.86 | 2.34 | |
1800 | 5.76 | 1.73 | |
2000 | 6.12 | 1.63 | |
2200 | 6.46 | 1.40 | |
2500 | 6.97 | 1.33 | |
2700 | 7.28 | 1.25 | |
3000 | 7.76 | 1.16 | |
3500 | 8.35 | 1.05 | |
4000 | 9.09 | 0.99 | |
* Maximum attenuation value shall be 105% of the nominal attenuation value | |||
Regulatorg Compliance/Certification | |||
RoHS 2011/65/EU | Compliant | ||
China RoHS SJ/T 11364-2006 | Below Maximum Concentration Value (MCV) | ||
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system | ||

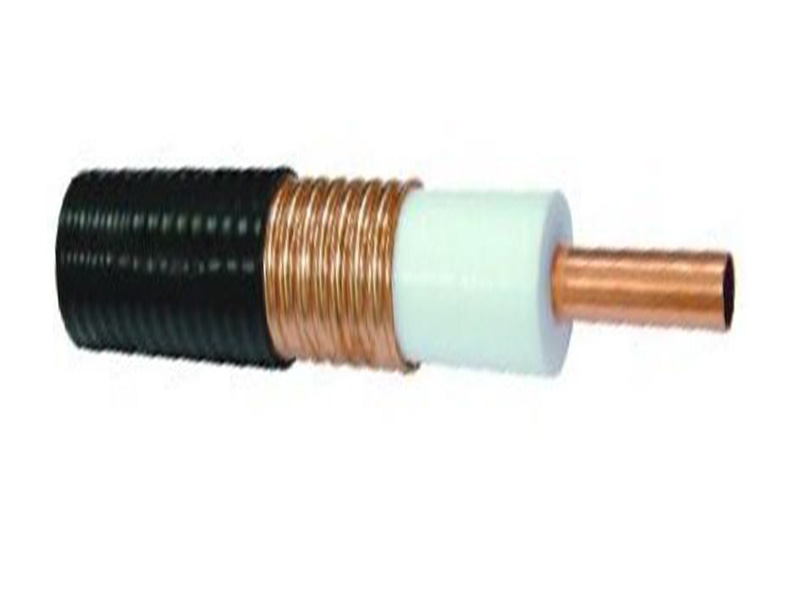

Product Image:
