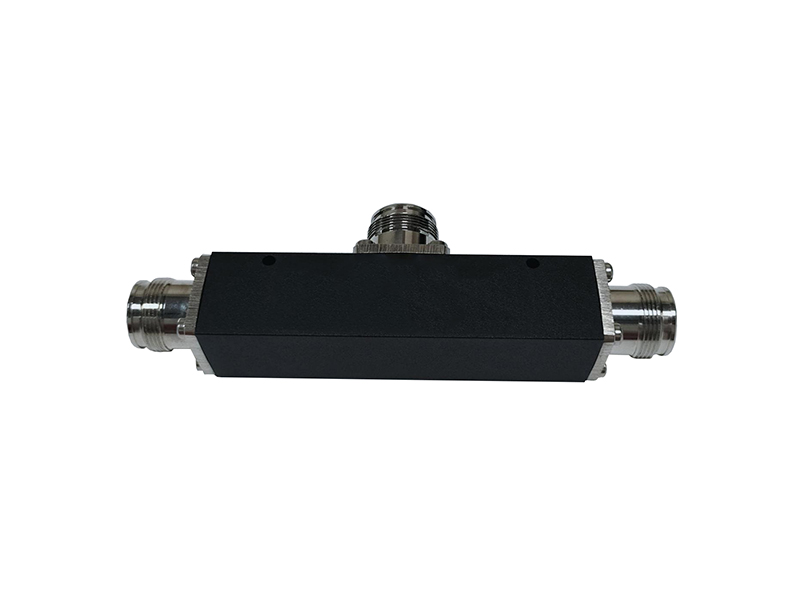

700-960/1710-2700MHz Power Tapper 4.3/10-Female

A Power Tapper, also known as a tap coupler or tap, is a passive device used in RF communication systems to divert a portion of the signal power from the main transmission line to a secondary output port while maintaining signal integrity and impedance matching. It allows for signal monitoring or distribution without significantly impacting the main signal path. Advantages of Our Product: 1:High Power Handling: Our power tappers feature high power handling capabilities, allowing them to tap signal power without introducing significant power loss or degradation. 2:Precise Power Division: Designed for accurate power division, our power tappers ensure consistent signal monitoring or distribution while maintaining signal integrity and quality. 3:Wide Frequency Range: Our power tappers cover a wide frequency range, making them suitable for various RF applications across different frequency bands and communication standards.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

                                 700-960/1710-2700MHz Power Tapper 4.3/10-Female

Electrical

Model No.

HTPT-727-XX-4F-160(XX refers to coupling value)

Frequency(MHz)

700-960/1710-2700

Coupling(dB)

3

4.8

6

8

9

10

13

15

20

Split Ratio

2:1

3:1

4:1

6:1

8:1

10:1

20:1

30:1

100:1

Tap loss (dB)

4.8

5

6

8

9

10

13

15

20

Accuracy(dB)

±1.0

±1.0

±1.0

±1.0

±1.0

±1.0

±1.0

±1.0

±1.0

Insertion loss(dB)

≤3.2

≤2.5

≤1.75

≤1.4

≤1.4

≤0.8

≤0.8

≤0.45

≤0.4

VSWR

≤1.25

≤1.25

≤1.25

≤1.25

≤1.25

≤1.25

≤1.25

≤1.25

≤1.25

Intermodulation (dBc)

≤-160dBc (3rd order; with 2×20W)

Impedance (Ω)

50

Input power (W)

200

Connector

4.3/10- Female

Color

Black

Weight(kg)

0.26

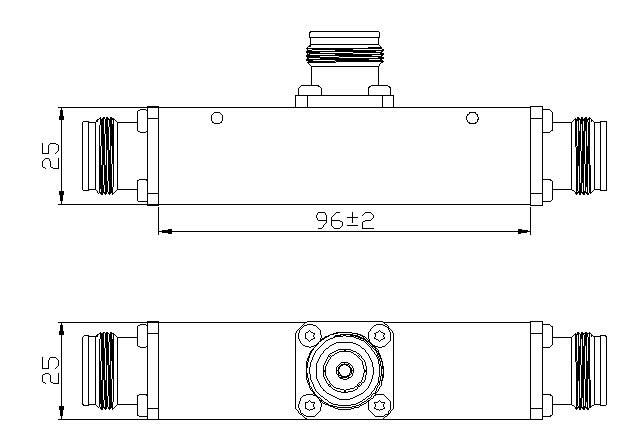

Dimensions(mm)

96*25*25(connectors excluded)

Environment

Operation temperature

-35 °C to +75 °C

Storage temperature

-55 °C to +85 °C

Relative humidity

5% - 95%

Application

Indoor or outdoor (IP65)
