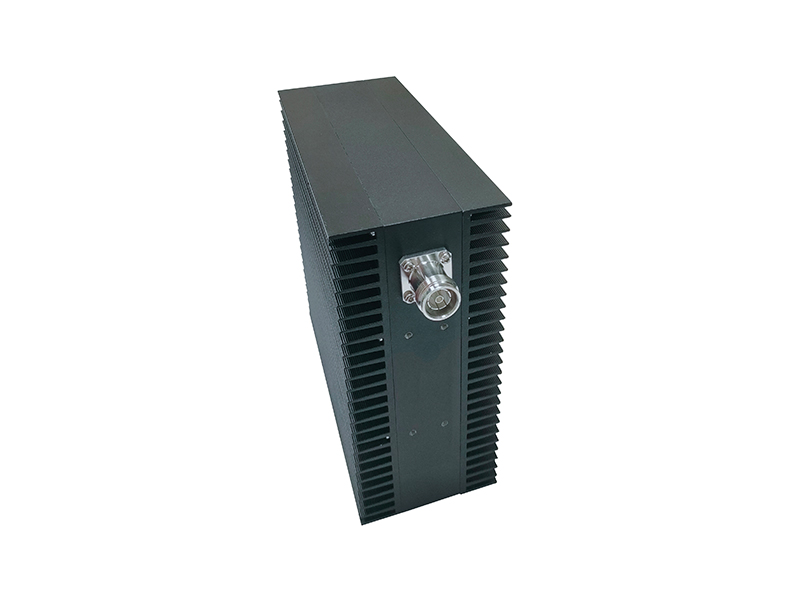

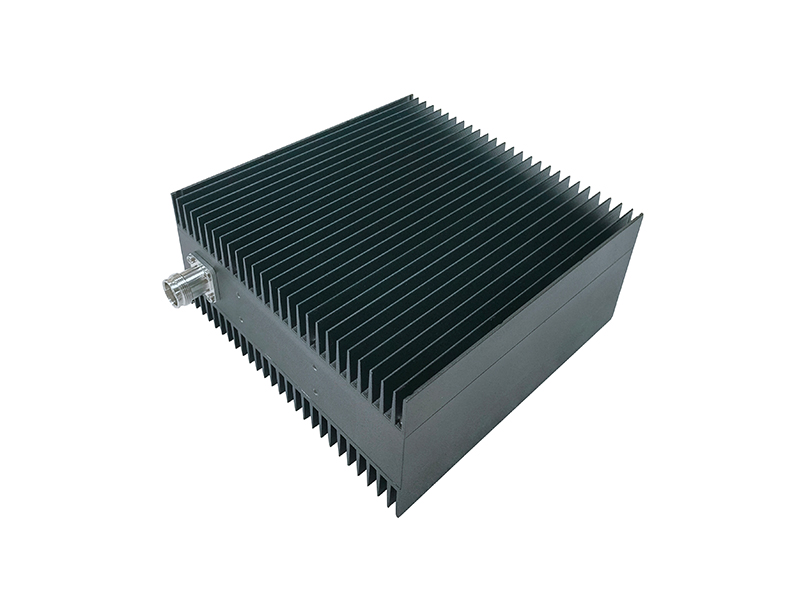

700-3000MHz 200W RF Load 4.3/10-Female
Electrical
Model No. | HTL-730-200-4F-160 |
Frequency(MHz) | 700-3000 |
VSWR | ≤1.25 |
Impedance (Ω) | 50 |
Power Rating(W) | 200 |
Intermodulation (dBc) | ≤-160dBc (3rd order; with 2×43dBm) |
Connector | 4.3/10-Female |
Color | Black |
Weight(kg) | 4.7 |
Dimensions(mm) | 200*200(connector excluded) |
Environment
Operation temperature | -40 °C to +125 °C |
Relative humidity | 5% - 95% |
Application | Indoor & Outdoor, IP65 |
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Termination Load, also known as a termination resistor or dummy load, is a passive device used to absorb RF energy and terminate RF circuits effectively. It simulates the presence of an antenna or other RF devices to prevent signal reflections and ensure proper impedance matching in RF circuits. Applications: Termination loads are used in various RF applications, including: 1:Testing and Measurement: Used in RF test setups and measurement instruments to terminate unused ports or simulate antenna loads during testing. 2:Transmitter Protection: Employed at the output ports of RF transmitters to absorb excess RF energy and protect the transmitter from damage due to mismatches or reflected power. Advantages of Our Product: 1:High Power Handling: Our termination loads feature high power handling capabilities, allowing them to absorb large RF power levels without degradation or failure.
